submersible pumps & Motors
VSP Solar pumps Solar pumping systems for every water need
Perfect to pump from
Dams
Bores
Rivers
Our heavy-duty range is designed for deep boreholes or high-volume commercial needs. Built for scale, choose the size that matches your demand.
Product Features
-
VSP systems are created to meet the widest variety of pumping applications using solar energy.

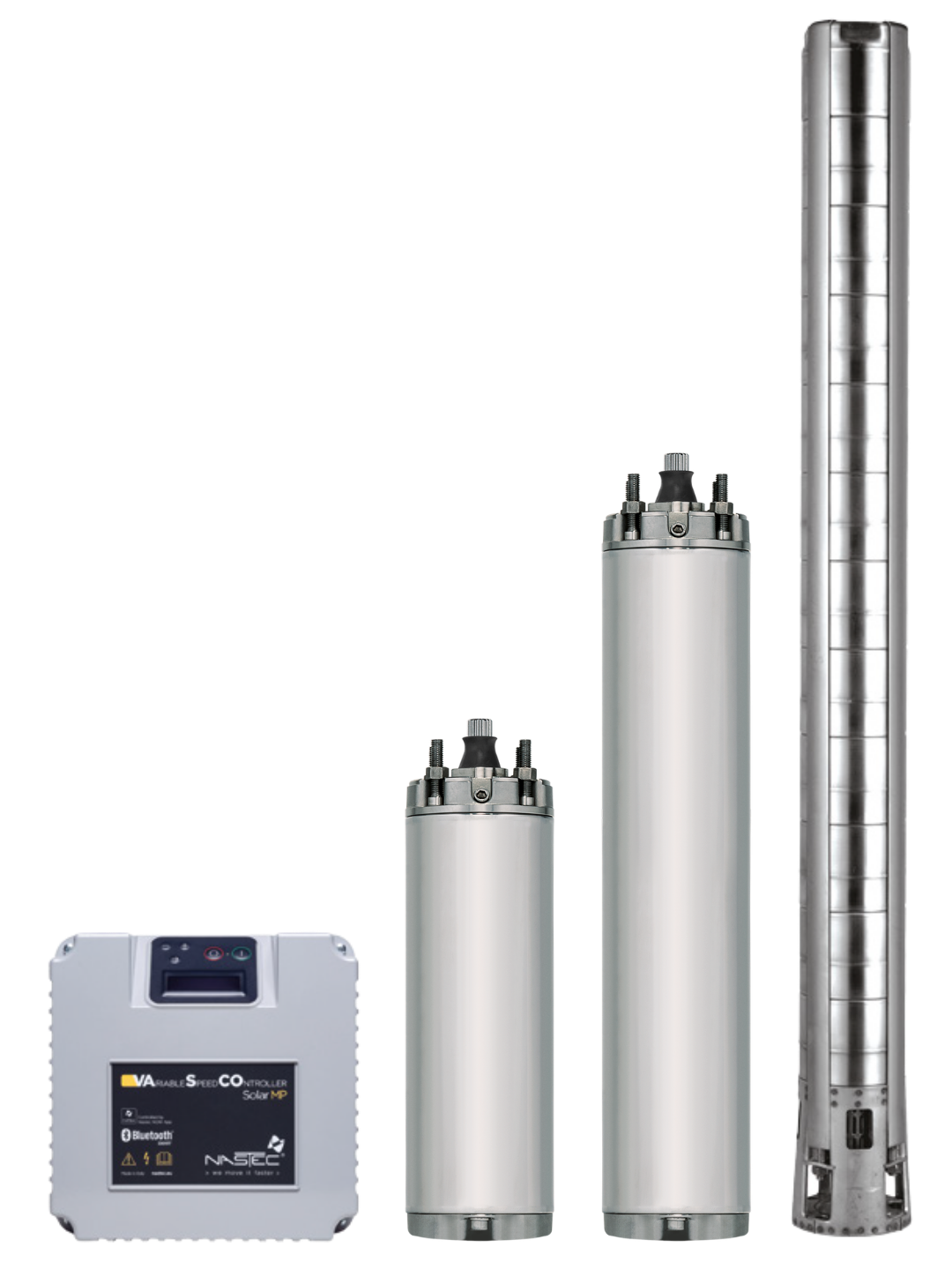

The combination of VASCO Solar – VAriable Speed COntroller inverters with the complete range of stainless steel submersible pumps ranging from 4” to 10” offers a solution of superior quality, unique in its reliability, variety and performance.
Whatever the demand for water, there is always a VSP system that can satisfy it.
-
It is able to convert DC voltage coming from solar panels into AC voltage for powering any pump driven by a three-phase motor.
Pump speed is constantly adapted to available solar irradiation thus maximising the amount of pumped water and making possible operation even in conditions of low sunlight.
It also offers complete pump protection against surges, overloads and dry running.
-
Complete range of 4″, 6″, 8″, 10″submersible pumps.
Fully AISI 304 stainless steel AISI 316 available on request.
Stainless steel impellers and diffusers for maximum efficiency and reliability.
Maximum sand content: 50 g/m3.
-
Three-phase 4″, 6″, 8″ water-filled submersible motors.
Encapsulated and resinated stator* to grant maximum insulation and heat dissipation.
Protection degree IP68.
Insulation class F.
Max water temperature: 30°C, minimum speed 0.08 m/s.
Removable lead connector.
Cable for drinking water applications, VDE/ACS/KTW compliant.
No-wear, water-lubricated thrust bearing.
AISI 316 version available on request.
* As an alternative, if required, rewindable motors with a PE2/PA winding insulation can be supplied.
MPPT: ALWAYS THE MAXIMUM POWER AVAILABLE
Based on the varying conditions of solar irradiation and temperature, MPPT (Maximum Power Point Tracking) maximises the electrical power drawn from the panels and therefore the amount of water pumped. The greater the solar irradiation the faster the pump's rotation speed, and consequently water flow increases.
When solar irradiation decreases (due to clouds or the different times of day), the pump reduces frequency and therefore the flow, but it continues to provide water until the irradiation fal-Is below a minimum level necessary to ensure operation.
Perfect for bores, dams and rivers.
Read how the NERA submersible pump can be used to pump water from bores, dams and rivers.
Want the complete package?
For the complete package systems, including solar panels and all necessary components for installation and operation.

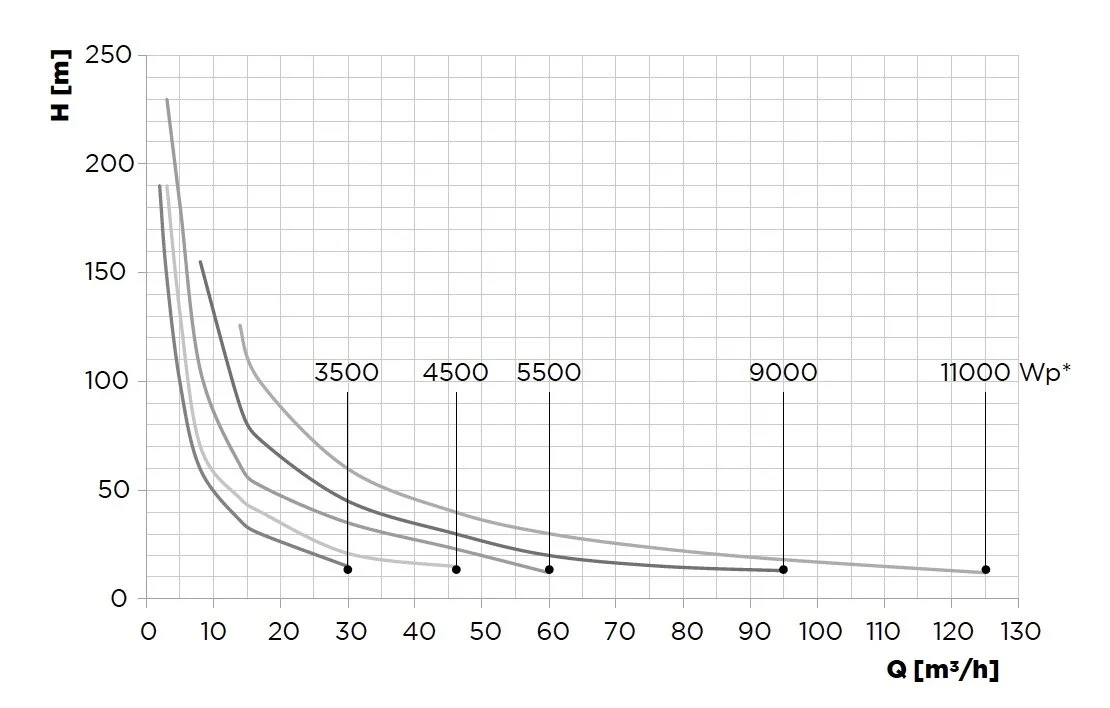

Technical Specifications
