SURFACE MULTISTAGE
SV - SUMP
Perfect to pump from
Waste water drainage
Water transfer
Sewage handling
Dewatering

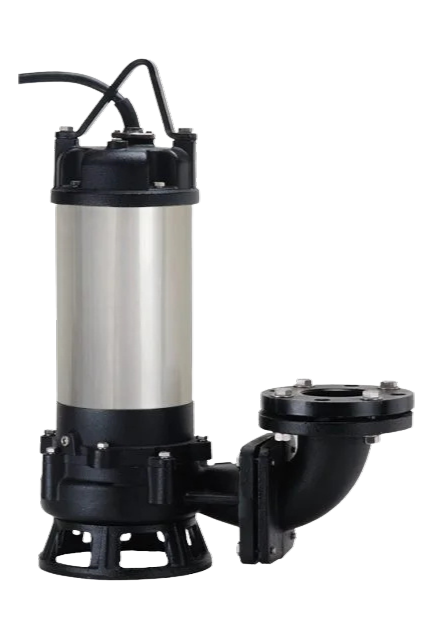

A space-efficient, powerful vertical pump ideal for farms or properties with limited room.
Product Features
All models are hermetically sealed to be watertight, dust-tight, and completely submersible
Dual mechanical seal designed to prevent leakage
High efficiency dry-type motor for improved environmental performance
Vortex impeller designed to prevent clogging
Robust construction for better reliability
Hand-carry design for easy transport
Auto-reset thermal overload protection for longer motor life
Technical Specifications
| Model | Power HP (kW) | Discharge inch | Phase | Standard | Max | Solid Passage mm | N.W. kg | Cable M | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Head M | Capacity LPM | Head M | Capacity LPM | |||||||
| SV-05-50 | 1／2 (0.37) | 2" | 1Φ/3Φ | 6 | 150 | 10 | 280 | 35 | 13.5 | 10 |
| SV-10-50 | 1 (0.75) | 2" | 1Φ/3Φ | 8 | 200 | 13.5 | 350 | 35 | 18.5 | 10 |
| SV-20-50(80) | 2 (1.5) | 2"/3" | 1Φ/3Φ | 10 | 400 | 17 | 650 | 35 | 34 | 10 |
| SV-30-50(80) | 3 (2.2) | 2"/3" | 3Φ | 11 | 450 | 19 | 750 | 35 | 35 | 10 |
