NEXT GENERATION OF SOLAR PUMPING INVERTER

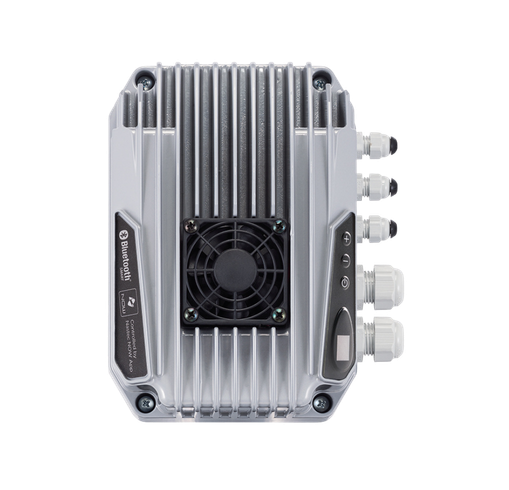

The MIDA Solar MP inverter is a user-friendly and reliable option for small to medium-sized solar pumping systems. Designed for direct solar operation, it delivers stable power conversion and system protection in a compact unit.

Perfect to pump for

Bores

Product Features

Product Brochure

    • Overvoltage and undervoltage.

    • Overcurrent and no load.

    • Dry running.

    • Overtemperature.

    • Control of single phase motors.

    • Next generation control of asynchronous motors.

    • Sensorless control of permanent magnet synchronous motors.

    • Integrated PFC (P.F. 1) to meet EN61000-3-2

    • Integrated input filter for Category C1 (EN61800-3), Class B (EN55011)

    • Graphic OLED display with extended range of operating temperature and wide viewing angle.

    • Digital rotation of text based on installation position.

    • Led indication for stand-by, run and alarm conditions.

    • Easy reading of main parameters and alarms.

    • Complete programming through smartphone.

Dams

Rivers

  • Through predictive analysis conducted by the device during operation, it is possible to intervene before a problem occurs, minimising intervention and repair costs.

    If the device is connected to the internet, warning or alarm notifications can be sent via email to the relevant users.

  • To obtain the latest available firmware version, updated with new features and improvements, simply connect to the device via smartphone and follow the guided update process provided by the app.

    This ensures that each installation is carried out with the utmost capabilities, or new functions can be added to existing systems.

  • In addition to the advanced control of three-phase asynchronous and synchronous motors with permanent magnets, in models with single-phase input, control for single-phase motors is available:

    • 2-wire split-phase (only for 209, 212, 218)

    • 2-wire PSC

    • 3-wire PSC

    • 3-wire CSCR

    • 3-wire CSIR

    In the control of single-phase 3-wire motors, the use of the control box with capacitors and starting relays is no longer necessary as the inverter electronically performs its function. This results in a significant advantage in terms of operational regularity and long-term reliability.

  • Through predictive analysis conducted by the device during operation, it is possible to intervene before a problem occurs, minimizing intervention and repair costs.

    If the device is connected to the internet, warning or alarm notifications can be sent via email to the relevant users. To do so, a quick configuration is required through the remo.nastec.eu portal.

MPPT: ALWAYS THE MAXIMUM POWER AVAILABLE

Based on the varying conditions of solar irradiation and temperature, MPPT (Maximum Power Point Tracking) maximises the electrical power drawn from the panels and therefore the amount of water pumped. The greater the solar irradiation the faster the pump's rotation speed, and consequently water flow increases.

When solar irradiation decreases (due to clouds or the different times of day), the pump reduces frequency and therefore the flow, but it continues to provide water until the irradiation fal-Is below a minimum level necessary to ensure operation.

Technical Specifications

View specifications
Model Vin DC
VDC		 Vin AC *
VAC		 Max V out
VAC		 Max I in
A		 Max I out
A		 P2 motor power **
VAC		 kW Size
MIDA Solar 203 90 - 400 90 - 265 250 11 6 1 x 230 0,37 1
MIDA Solar 203 90 - 400 90 - 265 250 11 3,5 3 x 230 0,55 1
MIDA Solar 205 90 - 400 90 - 265 250 11 10 1 x 230 0,75 1
MIDA Solar 205 90 - 400 90 - 265 250 11 5 3 x 230 1,1 1
MIDA Solar 207 90 - 400 90 - 265 250 11 12 1 x 230 1,1 1
MIDA Solar 207 90 - 400 90 - 265 250 11 7,5 3 x 230 1,5 1
MIDA Solar 209 90 - 400 90 - 265 250 14,5 13,5 1 x 230 1,5 2
MIDA Solar 209 90 - 400 90 - 265 250 14,5 9,5 3 x 230 2,2 2
MIDA Solar 212 90 - 400 90 - 265 250 19,5 13,5 1 x 230 1,5 2
MIDA Solar 212 90 - 400 90 - 265 250 19,5 12,5 3 x 230 3 2
MIDA Solar 218 90 - 400 90 - 265 250 32 17,5 1 x 230 2,2 2
MIDA Solar 218 90 - 400 90 - 265 250 32 18,5 3 x 230 4 2
