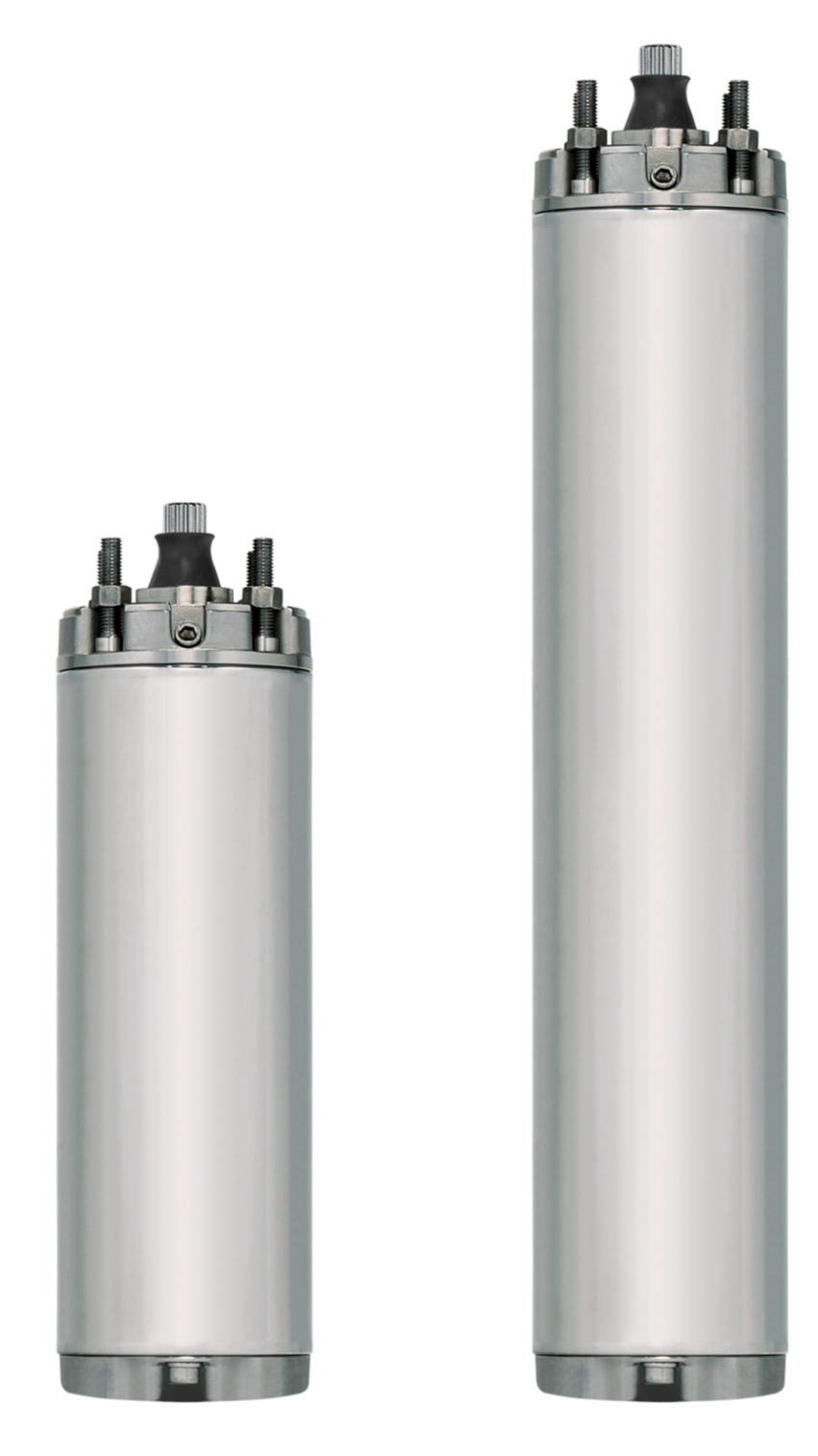

submersible Motors
SUMMAG IS THE ALL-NEW NASTEC RANGE OF SUBMERSIBLE MOTORS FOR THE BEST QUALITY, HIGHEST EFFICIENCY BOREHOLE APPLICATIONS.
Perfect to pump from
Our premium solar motor line. Designed for energy efficiency, long lifespan and compatibility with our full pump range.
Bores
a non-compromise solution.
The technical characteristics and materials adopted in SUMMAG motors represent a non-compromise solution. Everything is designed to ensure maximum reliability and lower consumption, with a consequent reduction in product life-cycle cost. The permanent magnet brushless synchronous motor (PMSM), in addition to ensuring high efficiency even at partial loads, allows for a reduction of about 50% in size and weight, with the advantage of robustness and ease of transport and installation. The silicon carbide mechanical seal, standard on all models, offers optimum resistance against sand and can be easily replaced in case of wear.
In addition, SUMMAG motors feature:
Flange and splined shaft according to NEMA 4” standard.
Encapsulated and resinated stator completely in stainless steel with AISI304 microfused flanges.
Cable with removable lead connector certified for drinking water.
Kingsbury type, high performance, thrust bearing.
Silicon carbide radial bearings with ceramic bushings.
Rubber diaphragm for pressure compensation.

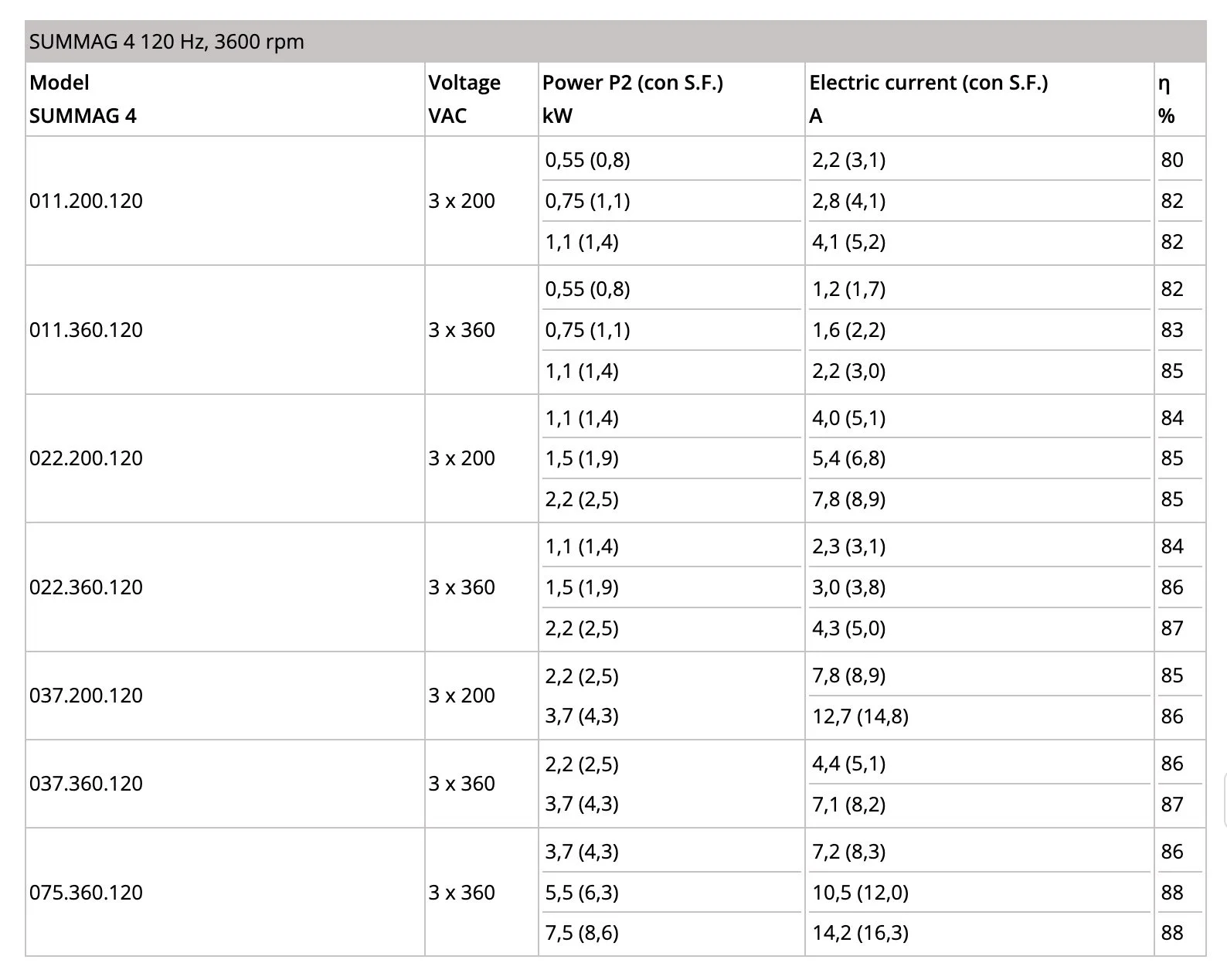

Technical Specifications
