PUMPTEC PACKAGE SYSTEMS
NERA - 4" + Control + Panels
The most compact and reliable solution for solar pumping applications
Reliable and efficient for household water, livestock, and garden use.
Perfect to pump from
Bores
Dams
Rivers
Package Includes:
NASTEC Pump + Motor / Inverter
Clenergy Post Mount Array
Tier 1 Solar Panels
DC Isolation Switch
2 x 2 Meter MC4 Leads
Earth lead and Earth Stake
Wieland Connector - Plug & Play
2.5mm2 (2c+e) H07RN-F Electrical Cable*
(Low water level sensor as standard)
Features
Large voltage range (26-190VDC can run on 1 panel)
MPPT for maximum flow in all weather conditions
High-Efficiency Permanent Magnet Motor
High-Efficiency Encapsulated Inverter
High Quality EPDM Pump Stator (Helical)
Hard Chromed Pump Rotor (Helical)
Overload, Overheating and Dry-Run Protection
Water Level Sensor
Removable Power Cable
All 304 Stainless Steel components (Nera 06/04)
Available Accessories
NERA Stop Module (Float / Pressure Switch)
Pressure Switch Kit (Includes 3lt Tank)
32mm Borecap - 200mm - Stainless Steel 304
Crusader Hose - FB100 / FB250
Safety Cable - 4mm - To suit Poly Pipe
*Cable lengths available on an application basis
Package options
Option 1 - Manual on/off
The most simple solution to turn simplest pump on and off by hand
1000 Volt DC isolator
- Wieland Connector - Plug & Play
- 2 Metre MC4 leads - Genuine
- Earth cable to ground
- Earth cable for panels
- SS mounting bracket for post & clamp
Option 2 - Pressure Switch Kit
Post Mount or Bore Cap Mounting Option. Suitable for tank filling in conjunction with a DUAL LEVEL float valve in the tank. Once the tank is full, the pump will automatically switch off until the water level in the tank is reduced to a level at which the pump will automatically turn back on and refill the tank.
- 1000 volt DC isolator
- Wieland Connector - Plug & Play
- XMP Pressure Switch
- 3LT Pressure Tank
- 5 Way Brass Tee
- Pressure Gauge
- 2 Metre MC4 leads - Genuine
- Earth cable to ground
- Earth cable for panels
Option 3 - Float Switch Kit
Suitable for tank filling in conjunction with a FLOAT SWITCH in the tank, once the tank is full the pump will automatically switch off until the water level in the tank is reduced to a level the pump will automatically turn back on and refill the tank.
- 1000 volt DC isolator
- Wieland Connector - Plug & Play
- Float switch with 10m lead & weight
- 2 Metre MC4 leads - Genuine
- Earth cable to ground
- Earth cable for panels
- Mounted under the DC Isolator

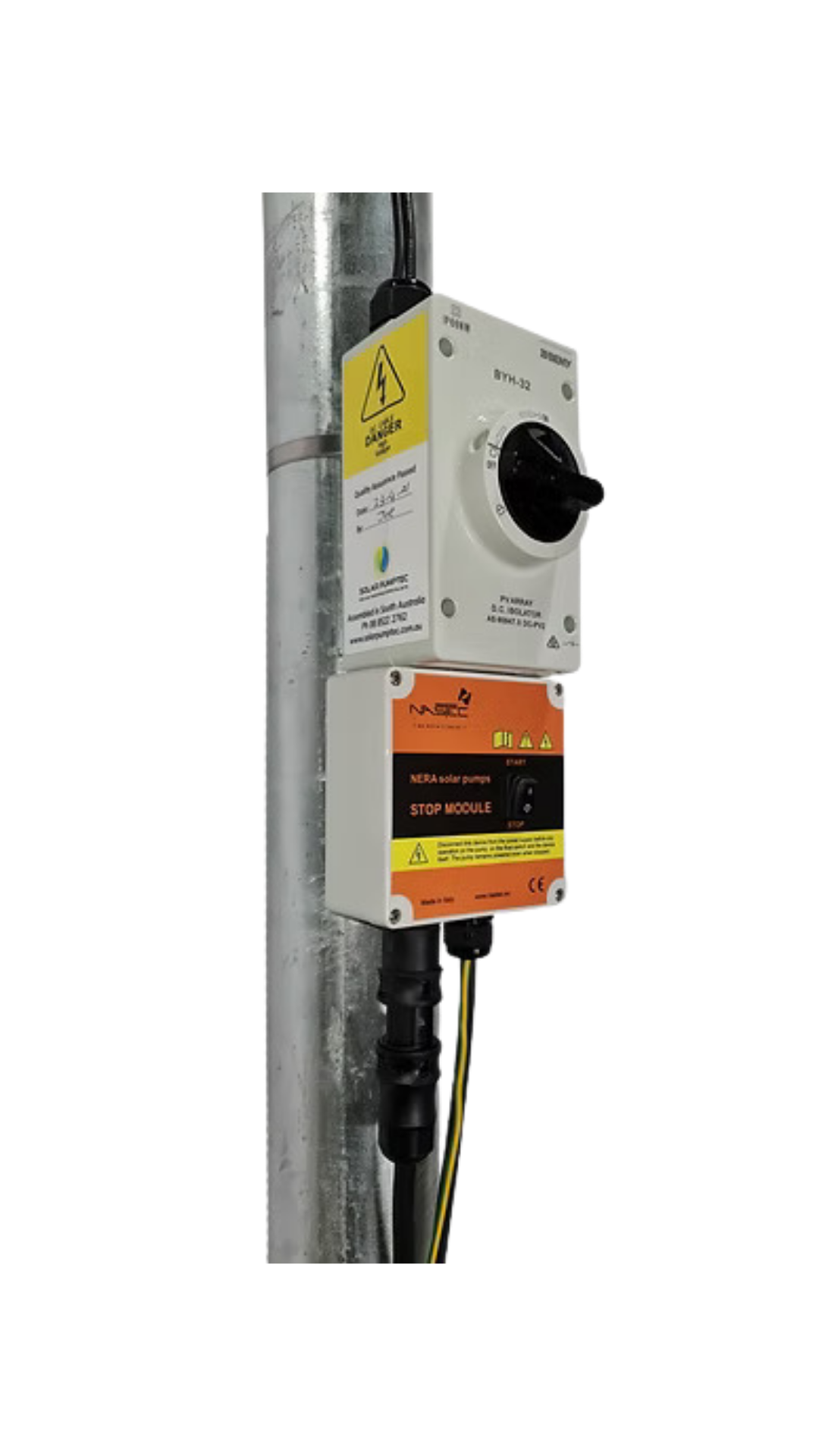

- Nera stop module mounted under ISO
Want to know more about the package?
