PUMPTEC PACKAGE SYSTEMS
4HS - 4" + Control + Panels
The most compact and reliable solution for solar pumping applications
Optimised for depth and consistent flow, even in challenging terrain, excellent for irrigation and remote tank setup.
Perfect to pump from
Bores
Dams
Rivers
Package Includes:
Nastec Pump + Motor / Inverter
Tier 1 Solar Panels
DC Isolation Switch
2 x 2 Meter MC4 Leads
Earth lead and Earth Stake
Wieland Connector - Plug & Play
4mm2 (4c+e) H07RN-F Electrical Cable*
(Low water level sensor as standard)
Features
Multipower - AC or DC
MPPT for maximum flow in all weather conditions
High-Efficiency Permanent Magnet Motor
High-Efficiency Encapsulated Inverter - Removable
Overload, Overheating and Dry-Run Protection
Water Level Sensor
Removable Power Cable
All 304 & 316 Stainless Steel components
Available Accessories
CM-MP Control Module for Full Control
AC / DC Change Over Switching
Pressure Switch Kit (Includes 3lt / 8ltTank)
Borecap - 200mm - Stainless Steel 304
Crusader Hose - FB100 / FB250
Safety Cable - 4mm - To suit Poly Pipe
4hs Auto Changeover Box
*cable lengths available on application basis
Package options

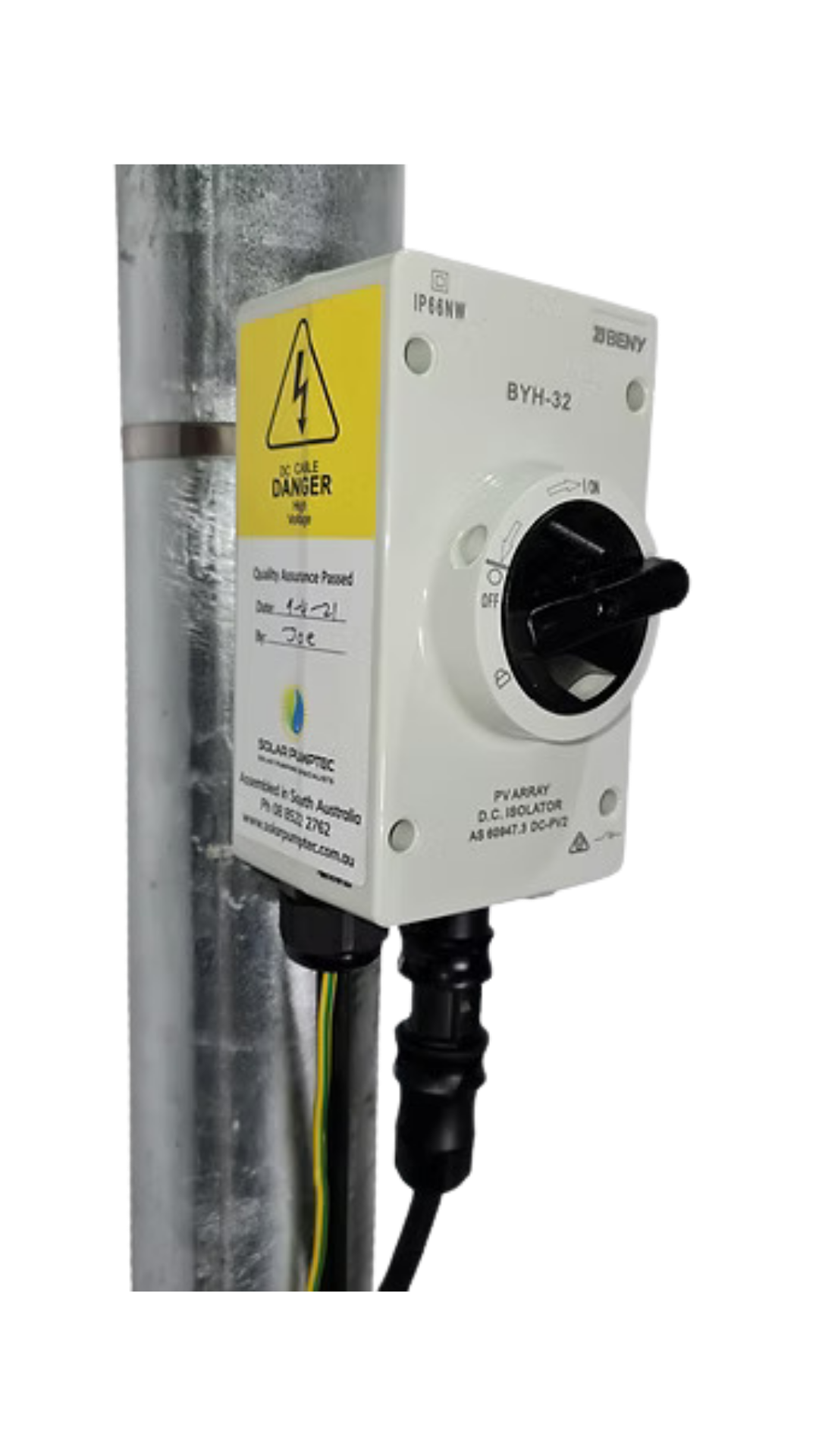

Option 1 - Manual on/off
The most simple solution to turn simplest pump on and off by hand
1000 Volt DC isolator
Wieland Connector - Plug & Play
2 Metre MC4 leads - Genuine
Earth cable to ground
Earth cable for panels
SS mounting bracket for post & clamp

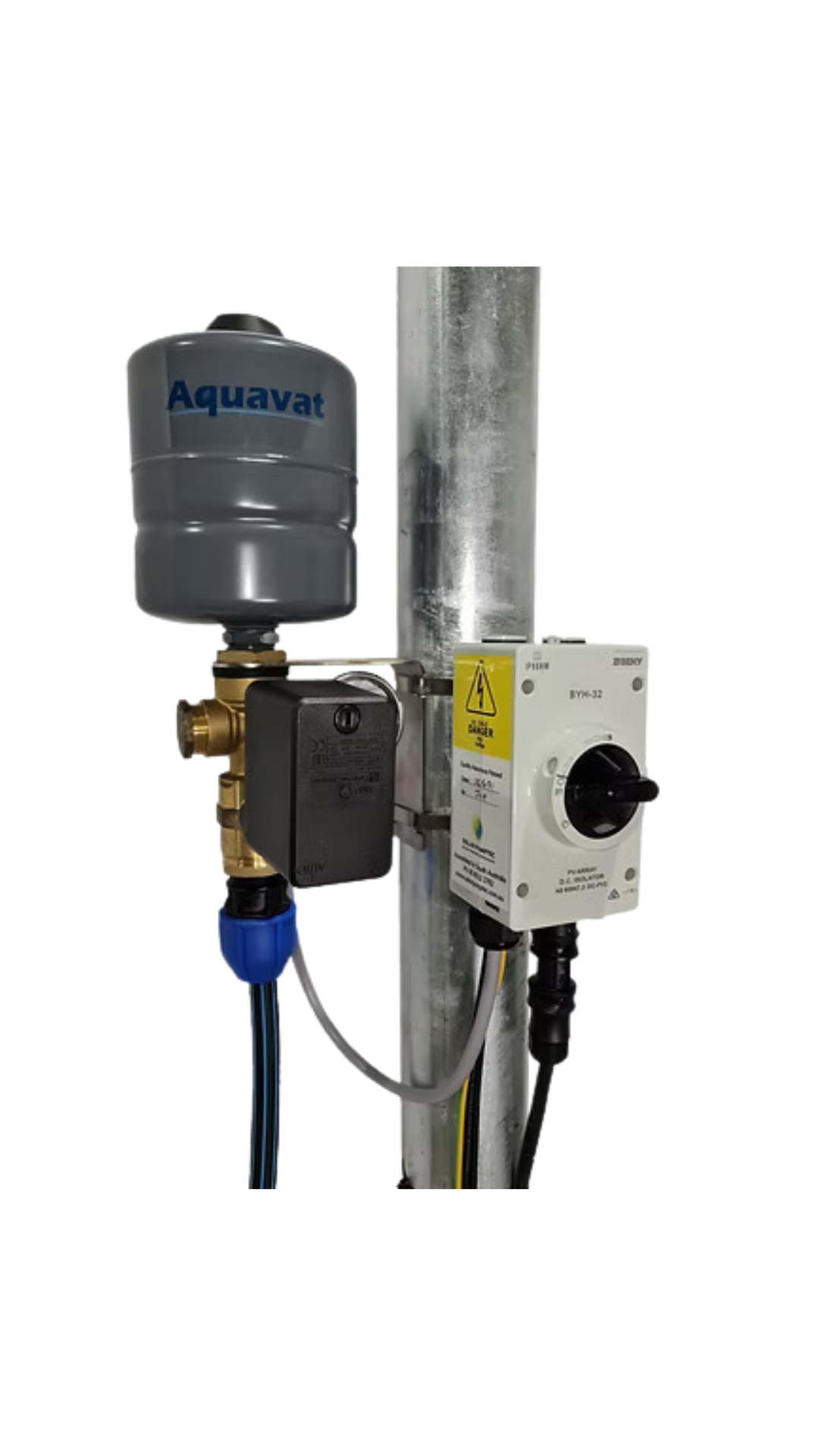

Option 2 - Post Mount or Bore Cap Mounting Option
Suitable for tank filling in conjunction with a DUAL LEVEL float valve in the tank. Once the tank is full, the pump will automatically switch off until the water level in the tank is reduced to a level where the pump will automatically turn back on and refill the tank.
1000 volt DC isolator
Wieland Connector - Plug & Play
XMP Pressure Switch
3LT Pressure Tank
5 Way Brass Tee
Pressure Gauge
2 Metre MC4 leads - Genuine
Earth cable to ground
Earth cable for panels
Option 3 - Float Switch Kit
Suitable for tank filling in conjunction with a FLOAT SWITCH in the tank. Once the tank is full, the pump will automatically switch off until the water level in the tank is reduced to a level where the pump will automatically turn back on and refill the tank.
1000 volt DC isolator
Wieland Connector - Plug & Play
Float switch with 10m lead & weight
2 Metre MC4 leads - Genuine
Earth cable to ground
Earth cable for panels
Mounted under the DC Isolator

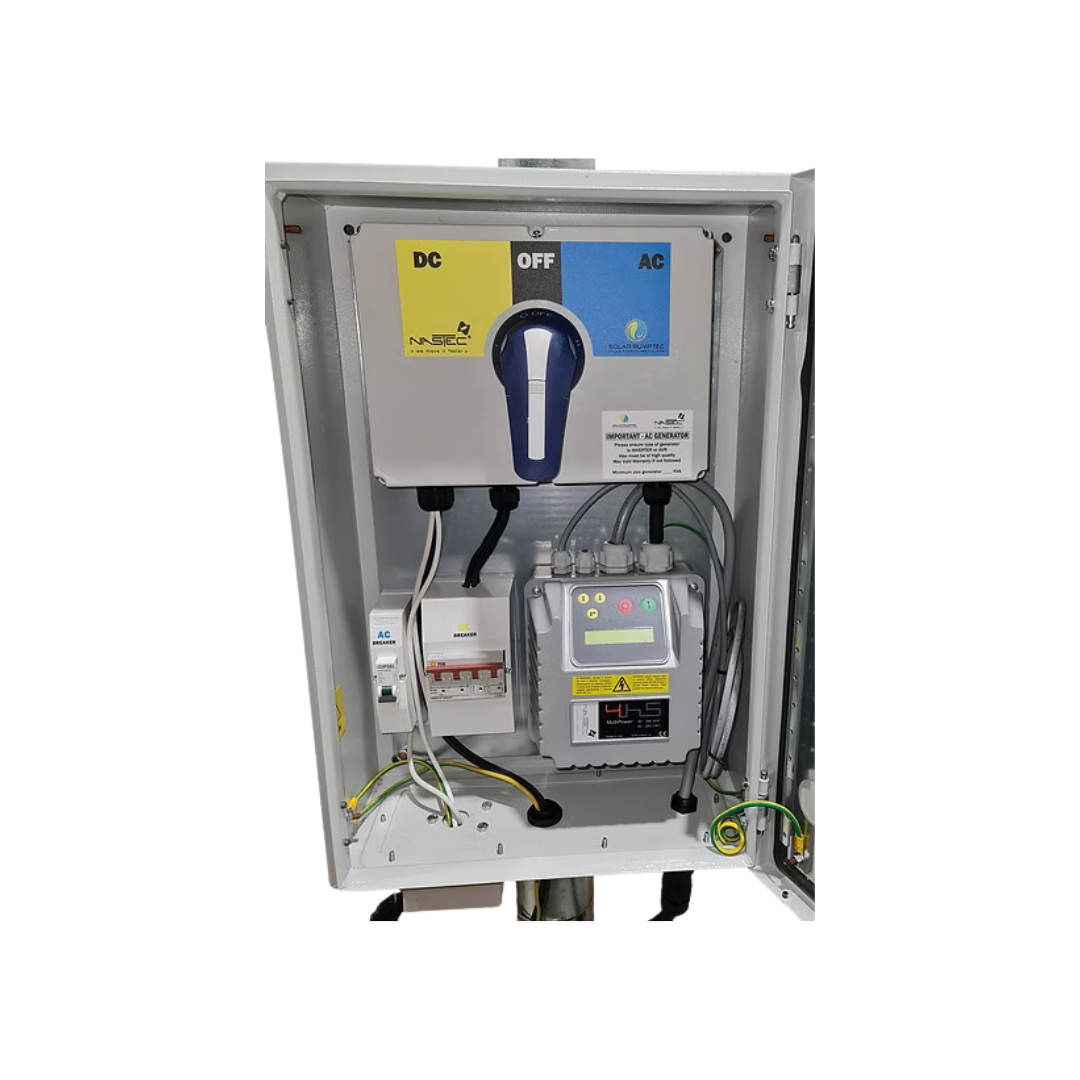

Option 4 - AC/DC Changeover - Plastic Enclosure
NASTEC AC/DC changeover switch is a simple solution which allows you to run your pump on a generator with a simple switch. AC/OFF/DC manual operation.
1000 volt DC isolator
Wieland Connector - Plug & Play
Float switch with 10m lead & weight
2 Metre MC4 leads - Genuine
Earth cable to ground
Earth cable for panels
Mounted under the DC Isolator

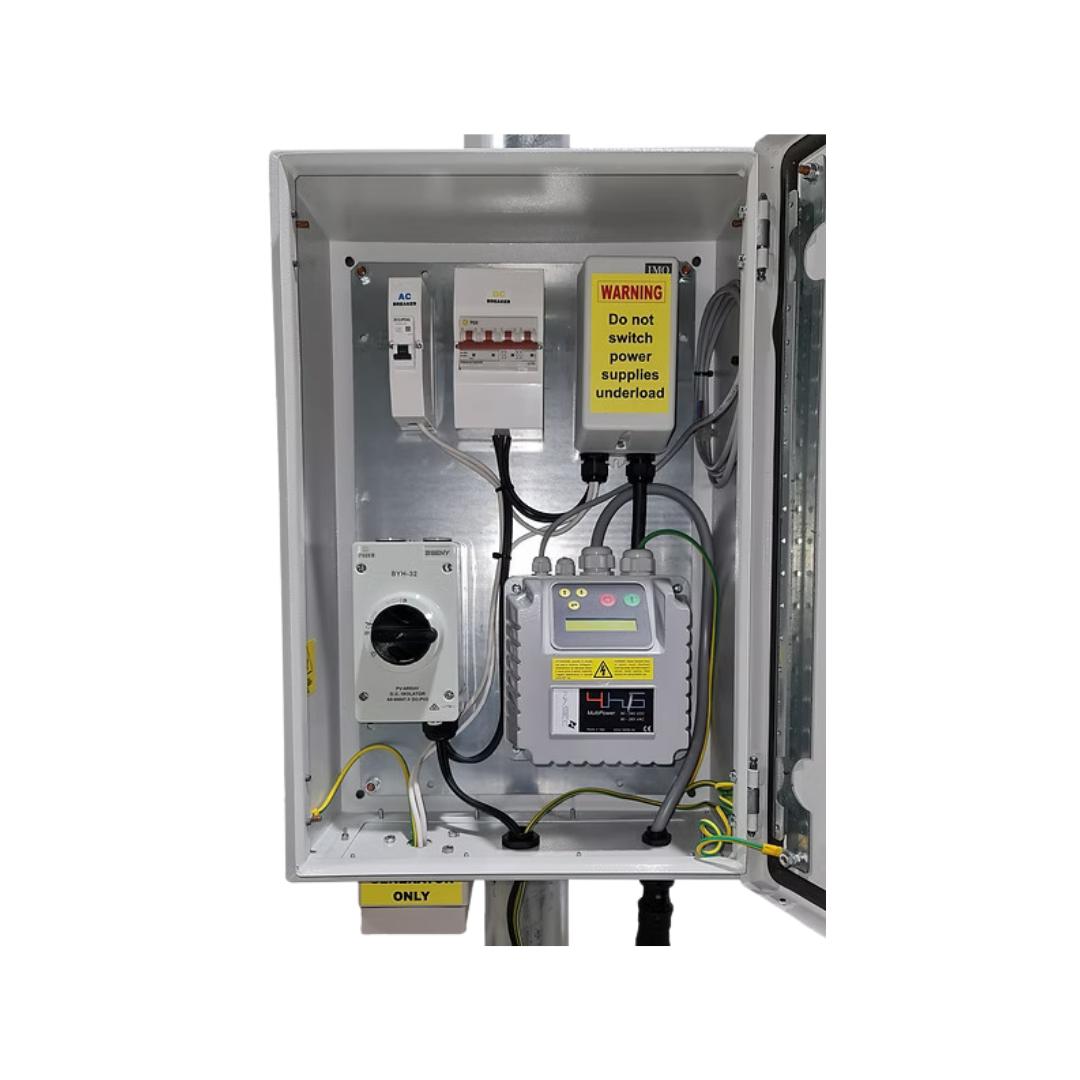

Option 5 - CM-MP Control Module - Metal Powder Coated Enclosure
NASTEC CM-MP Controller allows full communication with the pump below. You can visualise in real time how your pump is operating by viewing the available PV power from the sun, power consumption, speed of the motor and error reports such as “NO WATER” when the level becomes low.
4 Digital inputs for pressure switch, float switch, etc
2 Analog inputs for pressure transducer, etc
AC/DC changeover switching available in manual AC/OFF/DC operation or automatic for generator applications-
Want to know more about the package?
